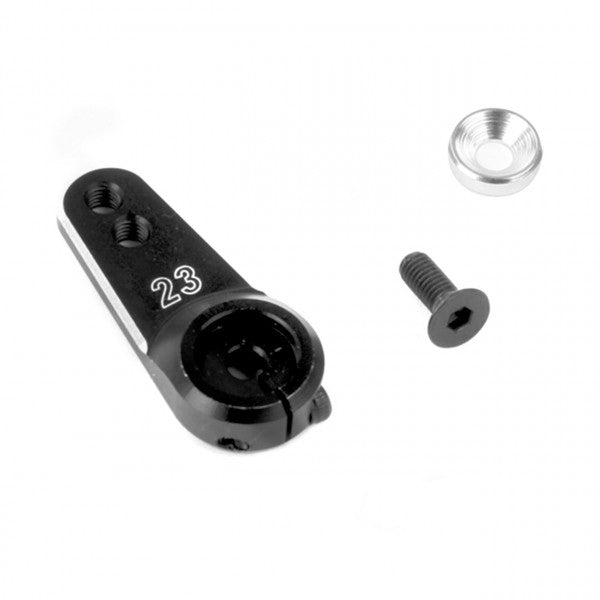

Product information "Aluminum Servo Arm 23 Teeth (light) Black"
These CNC manufactured aluminum servo levers are not only connected to the servo via the mounting screw from above, but also with a hexagon socket screw on the side. With this screw, the servo arm is clamped onto the output shaft and ensures maximum hold. Another advantage is that it is now connected to the servo with 100% no play, which results in a more direct linkage and also relieves the load on the gearbox. The number of teeth is laser engraved as a number or abbreviation so that the type can be determined later.
Since an aluminum servo horn is significantly stiffer than a plastic arm, all commands are implemented much more directly and precisely. In addition, it is of course much more robust than the plastic servo arms that are usually installed as standard.
Since an aluminum servo horn is significantly stiffer than a plastic arm, all commands are implemented much more directly and precisely. In addition, it is of course much more robust than the plastic servo arms that are usually installed as standard.
Technical data:
Suitable for:
Servos with 23 teeth gear ring / output shaft
e.g.: KoPropo / Sanwa / JR / Airtronics
Scope of delivery:
1x anodized single-arm servo lever 23 teeth
1x hexagon socket screws
- Total length servo arm: 30mm
- Arm thickness: 3mm
- Total height: 6mm
- Servo lever sits flush on the underside
- Press depth for servo gears: 3mm
- Mounting holes: M3 including thread (2 pcs.)
- Hole spacing of mounting holes to the center: 16mm (hole 1) / 20mm (hole 2)
Suitable for:
Servos with 23 teeth gear ring / output shaft
e.g.: KoPropo / Sanwa / JR / Airtronics
Scope of delivery:
1x anodized single-arm servo lever 23 teeth
1x hexagon socket screws
1x aluminum sleeve
1x servo mounting screw M3
