Product information "Aluminum servo arm 25 teeth double (light) black"

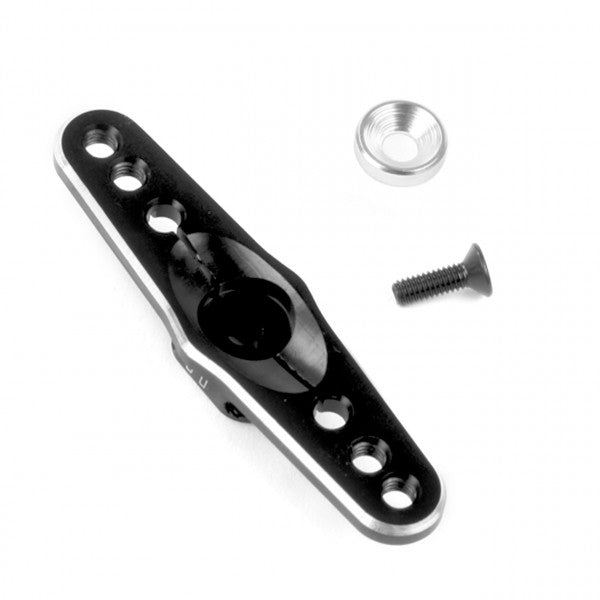

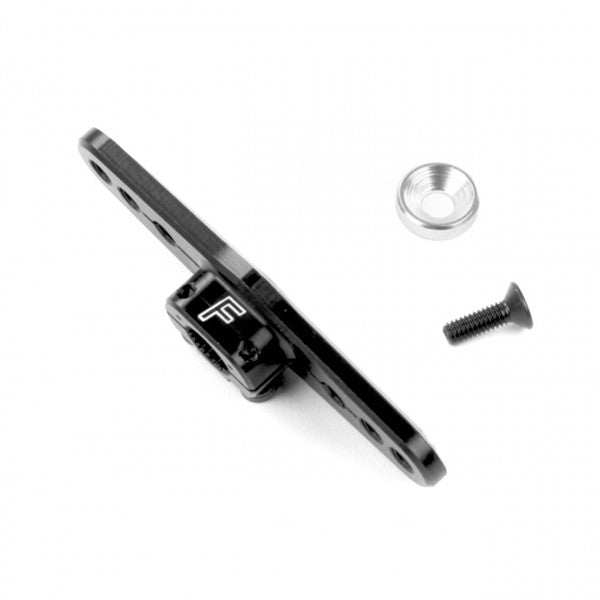

These CNC manufactured aluminum servo levers are not only connected to the servo via the mounting screw from above, but also with two hexagon socket screws on the side. With these two screws, the servo arm is clamped onto the output shaft and still ensures maximum hold even if a screw is lost. Another advantage is that it is now connected to the servo with 100% no play, which results in a more direct linkage and also relieves the load on the gearbox. The number of teeth is laser engraved as a number or abbreviation so that the type can be determined later.
Since an aluminum servo horn is significantly stiffer than a plastic arm, all commands are implemented much more directly and precisely. In addition, it is of course much more robust than the plastic servo arms that are usually installed as standard.
Scope of delivery:
1x anodized one-arm servo lever 23 teeth
2x hexagon socket screws
Since an aluminum servo horn is significantly stiffer than a plastic arm, all commands are implemented much more directly and precisely. In addition, it is of course much more robust than the plastic servo arms that are usually installed as standard.
Technical data:
Suitable for:
Servos with 25 teeth gear ring / output shaft
e.g.: Futaba / SRT / Savöx / Power HD etc
- Total length servo arm: 48mm
- Arm thickness: 3mm
- Total height: 8mm
- Servo lever sits flush on top
- Press depth for servo gears: 3mm
- Mounting holes: M3 including thread (2 pcs.)
- Hole spacing of mounting holes to the center: 11mm /16mm / 20mm
Suitable for:
Servos with 25 teeth gear ring / output shaft
e.g.: Futaba / SRT / Savöx / Power HD etc
Scope of delivery:
1x anodized one-arm servo lever 23 teeth
2x hexagon socket screws
1x aluminum sleeve
1x servo mounting screw M3
