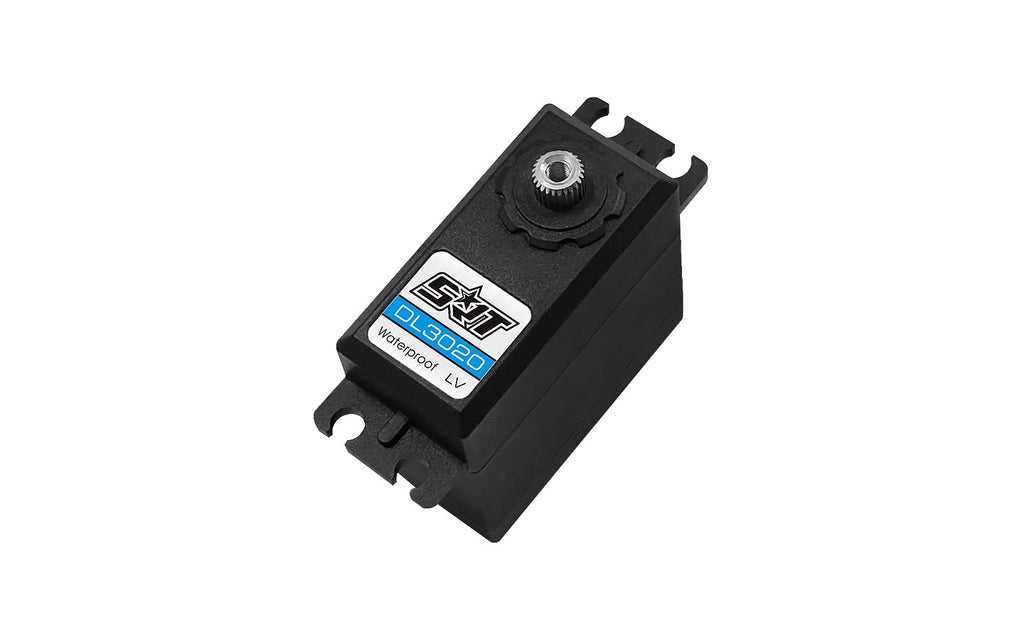

SRT DL3020 DC WATERPROOF DC Digital servo (20 kg-0,11s/60°)

  • Sale
  • Regular price €24,99
Tax included. Shipping calculated at checkout.


KEY FEATURES

  • Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
  • incredible efficiency and low power consumption
  • 2 μsec Dead Band

PRODUCT SPECIFICATIONS
  • Type: Digital
  • Bearing: Dual
  • Motor Type: DC
  • Gear Type: Metal
  • Gear Material: Copper & Aluminum
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc4.8-6.0v
  • operating temperature range: -10 to + 60 degree
  • operating speed (4.8v): 0.13 sec/60 degrees at no load
  • operating speed (6.0v): 0.11 sec/60 degrees at no load
  • stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
  • stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
  • weight: 56.0g (1.98 oz)
  • connector wire length: jr 250 mm
