SANWA

Sanwa PGS-XB2 SXR Response (0.11s/21.1kg/7.4V) Brushless Servo

  • Sale
  • Regular price €179,00
Tax included. Shipping calculated at checkout.


Features:
  • Programmable Servo to be compatible with SSL & Telemetry at Launch
  • Setting Adjustment by wireless from Radio
  • Setting Adjustment to connect Servo with Setting Gear
  • Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

          # Initial Setting on Setting Gear is necessary.

  • FH5U: SXR(Sanwa Xtreme Response) Mode-Compatible
  • SSL-Compatible Programmable Servo

          # Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)

  • PGS Setting Gear-Compatible
  • Super Response (SSR) Mode-Compatible
  • High Response (SHR) Mode-Compatible
  • Li-Po 2 CELL-Compatible
  • High Torque Type
  • Brushless Motor
  • Full Aluminum Case
  • Full Metal Gear (Strengthening Gears)
  • AL Heat Sink
  • Black Harness



Setting Items:
  • SSL-CH (SSL Channel Setting)
  • STRETC (Stretcher Adjustment)
  • BOOST (Boost Adjustment)
  • D-Band (Dead Band Adjustment)
  • MV-MID (Middle Torque Adjustment)
  • MV-END (Later Torque Adjustment)
  • BREAK (Break Adjustment)
  • MV-HOLD (Power Adjustment at whole area)
  • MV-FRQ (Feeling Adjustment at whole area)
  • MAX-PW (Max Duty Adjustment)
  • PGS-Servo Explanation

          # Setting Gear is necessary for ◎setting.



Specifications:
Speed (7.4V) 0.11 sec/60°
Speed (6.0V) 0.14 sec/60°
Torque (7.4V) 21.1 kg/cm
Torque (6.0V) 17.9 kg/cm

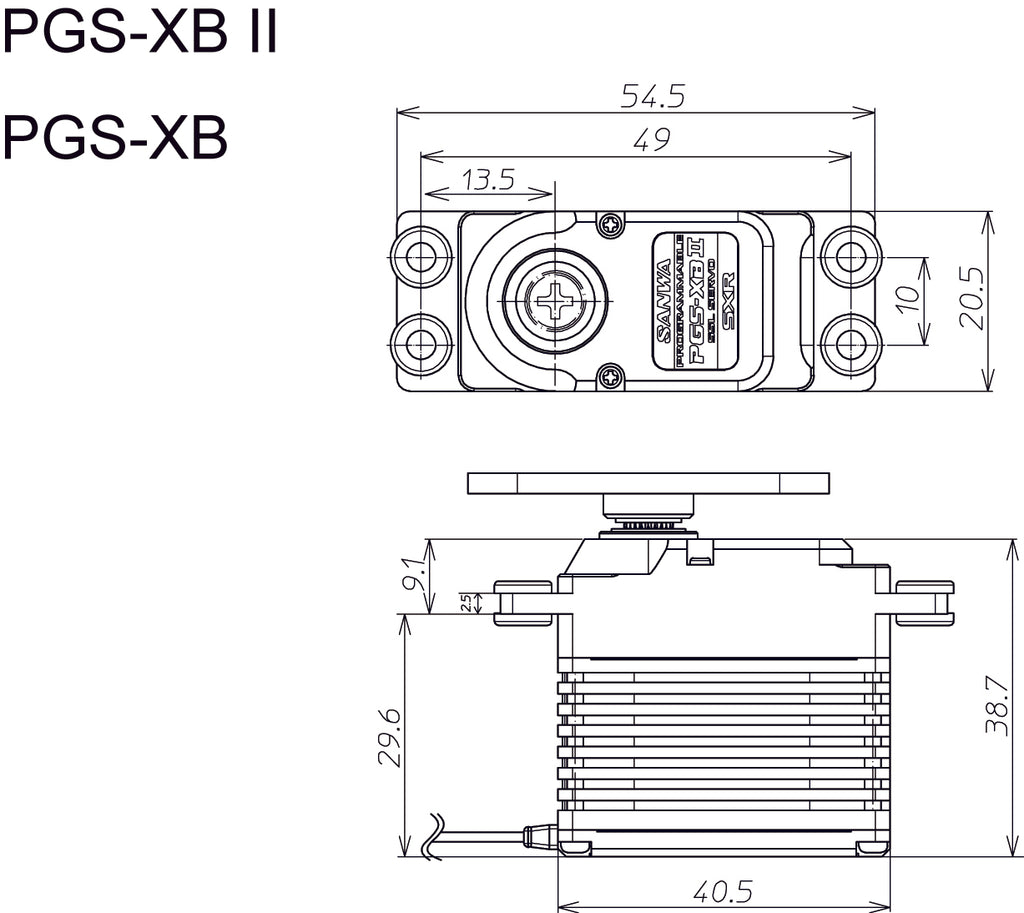

Dimensions 40.5x20.5x38.7mm
Weight 72g
