SANWA

Sanwa PGS-XR2 SXR Response (0.09s/17.3kg/7.4V) Brushless Servo

  • Sale
  • Regular price €179,00
Tax included. Shipping calculated at checkout.

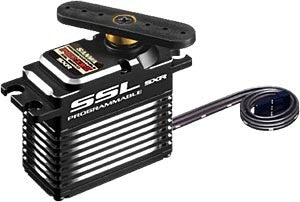

This is the Sanwa PGS-XR High Power Brushless Torque Servo (High Voltage).


Features:
  • SSL-Compatible Programmable Servo; *Compatible with CODE 10 (M12S, EXZES ZZ, MT-44) Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
  • PGS Setting Gear-Compatible
  • Super Response (SSR) Mode-Compatible
  • High Response (SHR) Mode-Compatible
  • LiPo 2S Compatible
  • Low Profile
  • High Speed
  • Brushless Motor
  • Full Aluminum Case
  • Full Metal Gear (Strengthening Gears)
  • Aluminum Heat Sink
  • Programmable Servo to be compatible with SSL & Telemetry at Launch
  • Setting Adjustment by wireless from Radio
  • Setting Adjustment to connect Servo with Setting Gear
  • Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.

*Initial Setting on Setting Gear is necessary.


Specifications:

Speed (7.4V)

0.09 sec/60°

Speed (6.0V)

0.11 sec/60°

Torque (7.4V)

17.3 kg/cm

Torque (6.0V)

14.0 kg/cm

Dimensions

40.5x20.5x38.7mm

Weight

72.0g



Settings:
  • SSL-CH (SSL Channel Setting)
  • STRETC (Stretcher Adjustment)
  • BOOST (BOOST Adjustment)
  • D-Band (Dead Band Adjustment)
  • MV-MID (Middle Torque Adjustment)
  • MV-END (Later Torque Adjustment)
  • BREAK (Break Adjustment)
  • MV-HOLD (Power Adjustment at whole area)*
  • MV-FRQ (Feeling Adjustment at whole area)*
  • MAX-PW (MAX Duty Adjustment)*

*Setting Gear is necessary for setting.
